Test Methods

Scenario design tells us what should be tested. Test methods determine how those scenarios are executed, what kind of evidence is collected, and how the results are translated into a validation argument. For planning and control, this distinction matters because the same concrete scenario can be exercised in several different ways: first in simulation, then in software-in-the-loop or hardware-in-the-loop settings, then on a controlled test track, and finally in a monitored real-world environment. The book already follows this logic in its current material, where physical testing, real-world seeding, and virtual testing are treated as three complementary ways of generating and executing tests, each with different strengths and limitations.

The central idea is that the scenario from the previous subsection must be brought into a test environment that is suitable for the question being asked. A lane-change scenario, for example, may first be explored in CARLA or another simulator, then repeated with software-in-the-loop or hardware-in-the-loop components, then confirmed at a controlled proving ground such as ZalaZONE, and finally monitored in limited real-world operation. In each case, the test method changes, but the underlying scenario remains the same. That is what makes the validation evidence comparable.

<!– Figure comment: testing ladder from simulation to SiL/HiL to test track to real-world testing –>

Simulation is the first and most flexible execution method. It allows the team to test a large number of scenario variants quickly, safely, and repeatably. This is especially important for planning and control, because the behavior of these modules depends strongly on speed, spacing, road geometry, actor behavior, and timing. A simulator can sweep those parameters systematically and expose boundary cases that would be too risky or too expensive to reproduce physically.

The current book already contains a strong simulation toolbox, and that material should be used directly here. For ground systems, CARLA is a natural open-source choice for academic and research work because it supports realistic urban scenes and sensor stacks. NVIDIA DRIVE Sim is useful when the goal is GPU-accelerated synthetic data and digital-twin style validation. IPG CarMaker, dSPACE ASM, VIRES VTD, Applied Intuition, Cognata, and MathWorks tools can be used when the focus shifts toward closed-loop vehicle dynamics, scenario coverage, or industrial validation workflows. These platforms are not identical, and that is part of the point: some are better for scenario breadth, some for sensor realism, some for controller validation, and some for integration with SIL and HIL.

For planning and control, simulation is especially useful when the test objective is one of the following:

1. checking whether the planner generates a safe trajectory across many parameter combinations;
2. checking whether the controller remains stable under delay, friction change, or uncertain motion;
3. identifying which scenario parameters drive unsafe or uncomfortable behavior;
4. replaying rare or dangerous edge cases without exposing people or equipment to risk.

A practical way to use simulation is to split it into two layers. Low-fidelity simulation is used first to sweep large scenario spaces quickly and identify where safety margins begin to tighten. High-fidelity simulation is then used for the most important cases, where sensor realism, closed-loop dynamics, and timing behavior matter more. The book’s current material already describes this logic: low-fidelity simulation is useful for broad exploration, while high-fidelity simulation is used to replay informative cases with more realism and to connect the result to later track testing.

Simulation becomes more valuable when the actual autonomy stack is connected to it. In software-in-the-loop testing, the real planning or control software runs inside the virtual environment. This is useful because it tests the actual code while keeping the physical risk low. If the software produces the wrong maneuver, the wrong timing, or the wrong fallback action, the error can be observed in a safe and repeatable setting.

Hardware-in-the-loop adds another layer of realism. It places real or representative hardware into the loop, such as ECUs, data buses, actuator interfaces, or timing elements. This is particularly important for planning and control, because the question is often not only whether the algorithm is correct, but whether the command reaches the vehicle correctly and on time. A planner that works in software may still fail once the actuation path, timing jitter, or bus communication is introduced.

The current manuscript already gives a good example of this in the discussion of virtual ECUs and data buses, where the test rig can simulate bus traffic, counters, checksums, subsystem failures, and graceful degradation. That material fits naturally here because it shows how HiL-style twins help validate actuator-path integrity without requiring a full physical rig.

Test tracks are the bridge between simulation and real-world operation. They provide physical realism while preserving a controlled environment in which scenarios can be repeated, instrumented, and compared. This makes them ideal for confirming whether a scenario that worked in simulation also behaves correctly on a vehicle with real dynamics, real sensing, and real timing.

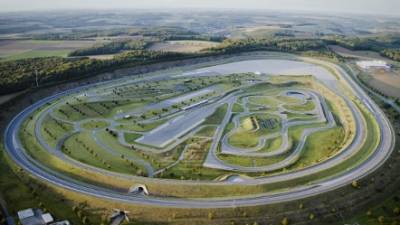

One of the ground-systems test track examples is ZalaZONE in Hungary. ZalaZONE includes a Smart City Zone, highway and rural sections, a high-speed oval, dynamic platform, wet and dry handling courses, off-road areas, and V2X/5G infrastructure. It also supports simulation and digital-twin integration through tools such as IPG CarMaker and AVL, making it especially useful for SIL and HIL validation alongside physical track tests.

<!– Figure comment: ZalaZONE autonomous test track –>

Test-track validation is particularly suitable for:

1. lane changes and overtaking;
2. cut-in and cut-out events;
3. obstacle avoidance;
4. stop and yield behavior;
5. emergency braking;
6. localization disturbance checks;
7. controller timing and actuation tests.

The strength of a test track is controllability. The same maneuver can be repeated under carefully defined conditions, and the result can be compared against the corresponding simulation case. This makes it possible to isolate whether an unsafe outcome came from the scenario itself, the planner, the controller, the localization path, or the actuation behavior.

The chapter should also keep the existing infrastructure discussion on sensor and EMC testing, because that supports the broader idea of physical validation. Anechoic chambers, fully anechoic chambers, semi-anechoic chambers, RF-shielded rooms, and reverberation chambers are important when sensor behavior, electromagnetic interference, and communication robustness need to be measured under controlled conditions. That content belongs here because planning and control depend on the quality and timing of the sensing stack, and sensing validation is part of what makes the test result credible.

<!– Figure comment: anechoic chamber –>

Real-world testing is the most demanding method because it captures the actual operational environment. It should therefore be used after the system has already shown acceptable behavior in simulation and on the track. The goal is not to replace simulation or track testing, but to confirm that the validated behavior survives contact with the real world.

The current material gives a useful distinction that should be preserved: one line of validation uses real-world experience as the starting point for further virtual testing, while another line uses the fleet or field itself as a large distributed testbed. The Tesla-style fleet approach is a good example of the first case, where data from the field is fed into a large-scale validation pipeline. Pegasus and the Warwick-related scenario database are good examples of the second, where observed situations are turned into reusable validation material. OpenSCENARIO 2.0 also belongs here because it supports symbolic, reproducible scenario generation based on structured descriptions rather than ad hoc test notes.

This section is also the right place to mention that test generation can be seeded by observed events. Real-world seeding is valuable because it gives the team real situations instead of purely synthetic ones. However, completeness is still an open issue, and there is always a risk that the collected database overrepresents familiar or already-seen conditions. That is why seeding should be treated as a source of test diversity, not as a complete validation solution.

Real-world testing is most useful when the question is:

1. does the system remain safe in its intended ODD?
2. does the planner and controller remain stable under actual traffic and infrastructure conditions?
3. do the simulation and track assumptions still hold once the system is deployed?

The test method should follow the validation question.

This is not a rigid ladder. In practice, validation moves back and forth between methods. A track failure may lead to changes in the scenario model or the simulator. A simulation failure may lead to a revised controller or a narrower ODD. A real-world failure may lead to a new safety margin, a changed fallback rule, or a better test-track reproduction of the same case.

The important point is that each method contributes a different kind of evidence. Simulation gives scale, SiL and HiL give integration realism, test tracks give controlled physical confirmation, and real-world testing gives operational credibility. For planning and control, a credible validation strategy needs all of them, with the scenario from the previous subsection serving as the common reference across the different execution environments.

The results of planning and control testing should be recorded in a form that can be compared across methods and reused in the safety argument. The most useful evidence is:

1. trajectory error;
2. tracking error;
3. Time-to-Collision and Distance-to-Collision;
4. collision or near-miss events;
5. maneuver completion time;
6. planner latency;
7. controller response delay;
8. jerk and acceleration comfort measures;
9. safe fallback activation;
10. repeatability across similar runs.

These outputs should be interpreted together. A maneuver that is accurate but unsafe is not acceptable. A maneuver that is safe but erratic may also be unacceptable if it creates instability or poor comfort. The validation report should therefore link each result back to the scenario definition, the test method, and the original system requirement.

The role of this subsection is to turn scenarios into evidence. Simulation, track testing, and real-world testing are not competing methods; they are complementary layers of the same validation strategy. Simulation gives breadth, physical test tracks give controlled confirmation, and real-world operation gives the strongest form of deployment evidence. The next subsection can now focus on how these results are packaged into a validation argument and how they support the chapter summary.
