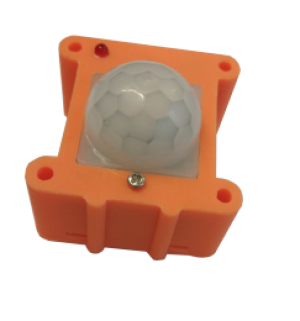

PIR module

PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range.

Specifications

  • Sentry Angle: 110 degree
  • Sentry Distance: max 7 m

Electrical connection

Connected to port GPIO14 and GPIO2
