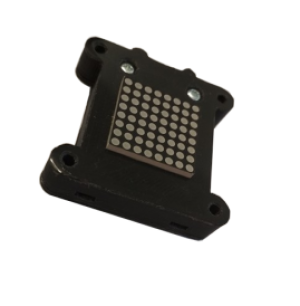

LED matrix module

Matrix Module is capable of displaying numbers or other symbols.

Specifications

  • 8×8 dot matrix LED
  • 8 step adjustable intensity

Electrical connection

Connected to port GPIO14 and GPIO3
