Robotic HomeLab III generation

The modules of the Robotic HomeLab are divided into different kits, allowing one to select the best option for the needs of a student or school. The simplest set is the Robotic HomeLab Basic kit including the components to carry out the basic microcontroller experiment. In addition to the microcontroller, the kit consists of a User Inteface module with LCD display and Combo module. Together with the Robotic HomeLab Basic kit, the Robotic HomeLab Add-On kit can be used; this includes different types of motors and sensors together with accessories. The Robotic HomeLab Add-On kit cannot be used separately from the Robotic HomeLab Basic kit as the microcontroller is not included. In addition the RFID and Machine Vision modules are available. The Robotic HomeLab Basic kit together with the Robotic HomeLab Add-On kit are convenient to use and carry to home for the robotic experiments.

Robotic HomeLab Basic kit

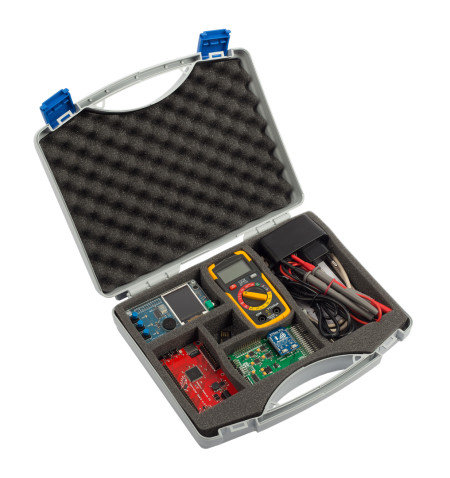

Robotic HomeLab Basic kit

  • AVR ATxmega128A1U development board with SD card reader
  • User interface module
    • 3 x LED (green, yellow and red)
    • 3 x buttons
    • 7-segment display
    • Graphical LCD (128×160 px, 24-bit RGB)
    • Speaker
    • Potentiometer (11 bit - 2048)
    • Light dependent resistor
    • Thermistor
    • Microphone
  • Combo module
    • 4 x H-bridge DC motor drivers
    • 1 x unipolar stepper motor driver
    • 4 x Servo / Encoder
    • Connections for sensors
    • Wireless module connection with Bluetooth module
  • USB cable
  • Micro SD card with USB adapter
  • Example exercises with C-source code (examples)
  • Software library
  • Power supply
  • Multimeter
  • Software for programming in Assembler and C language
  • Portable case



Robotic HomeLab Add-On kit

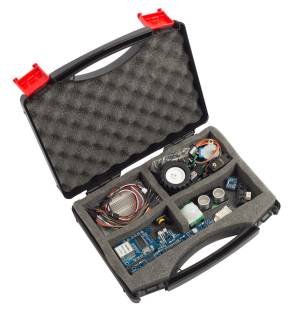

Robotic HomeLab Add-On kit

Motors

  • 2 x DC motor(w/ gearbox, wheel and coder)
  • RC mini servomotor
  • Stepper motor (unipolar)

Sensors

  • Ultrasonic distance sensor with cable
  • Infrared distance sensor with cable
  • Line following module
  • Passive infrared sensor (motion sensor)
  • Humidity and temperature sensor
  • Pressure sensor
  • Accelerometer

Expansion modules

  • Ethernet module
  • Real time clock (RTC) module

Prototyping equipment

  • Solderless prototyping board
  • 20 x jumper cables



Robotic HomeLab additional modules

Additional modules are not packed into the cases but can be directly connected with Robotic HomeLab Communication module. Practical examples and exercises are provided for these modules.

  • High frequency RFID module with tags
  • Machine vision module
  • WiFi module
  • GPS module

Robotic HomeLab kits can be used in addition to experiments as a base controller for a robotic or any other mechatronics system. Robotic HomeLab versions are in constant development so check for updates. Also note the version number because some examples or exercises work with only newer versions.

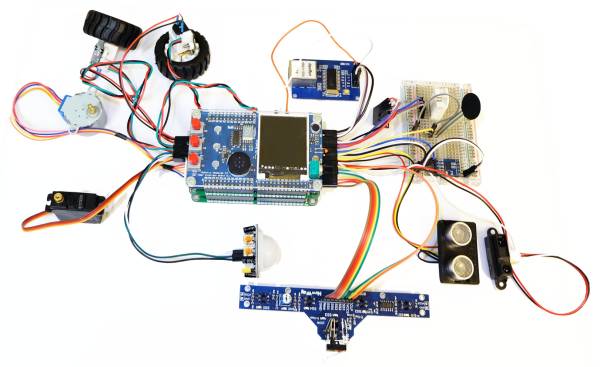

Connecting Robotic HomeLab modules

Connection table

AVR pinFunctionHeader groupDevice AVR pinFunctionHeader groupDevice
PA0ADC0PA-PB-PFADC 0 PF0OC0A/SDAPA-PB-PFI/O Port
PA1ADC1PA-PB-PFADC 1 PF1OC0B/SCLPA-PB-PFI/O Port
PA2ADC2 / DAC0PA-PB-PFADC 2 PF2OC0C/RXD0PA-PB-PF
PA3ADC3 / DAC1PA-PB-PFADC 3 PF3OC0D/TXD0PA-PB-PF
PA4ADC4PA-PB-PFADC 4 PF4SD card SS SD card
PA5ADC5PA-PB-PFADC 5 PF5SD card MOSI SD card
PA6ADC6PA-PB-PFADC 6 PF6SD card MISO SD card
PA7ADC7PA-PB-PFADC 7 PF7SD card SCK SD card
PB0ADC8PA-PB-PFADC 8 PH0 PH-PJ-PKButton S3
PB1ADC9PA-PB-PFADC 9 PH1 PH-PJ-PKButton S2
PB2ADC10 / DAC0PA-PB-PFADC 10 PH2 PH-PJ-PKButton S1
PB3ADC11 / DAC1PA-PB-PFSpeaker PH3 PH-PJ-PKLED 3
PB4ADC12PA-PB-PFMicrophone PH4 PH-PJ-PKLED 2
PB5ADC13PA-PB-PFLDR PH5 PH-PJ-PKLED 1
PB6ADC14PA-PB-PFNTC PH6 PH-PJ-PK
PB7ADC15PA-PB-PFPOT PH7 PH-PJ-PK
PC0OC0A/SDAPC-PD-PEDC 1A PJ0 PH-PJ-PKStepper 1
PC1OC0B/SCLPC-PD-PEDC 2A PJ1 PH-PJ-PKStepper 2
PC2OC0C/RXD0PC-PD-PEDC 3A PJ2 PH-PJ-PKStepper 3
PC3OC0D/TXD0PC-PD-PEDC 4A PJ3 PH-PJ-PKStepper 4
PC4OC1A/SSPC-PD-PEServo 1 PJ4 PH-PJ-PKDC 1B
PC5OC1B/MOSIPC-PD-PEServo 2 PJ5 PH-PJ-PKDC 2B
PC6RXD1/MISOPC-PD-PEXbee RX PJ6 PH-PJ-PKDC 3B
PC7TXD1/SCKPC-PD-PEXbee TX PJ7 PH-PJ-PKDC 4B
PD0OC0A/SDAPC-PD-PEENC 1 PK0 PH-PJ-PKLCD CS
PD1OC0B/SCLPC-PD-PEENC 2 PK1 PH-PJ-PKLCD RS
PD2OC0C/RXD0PC-PD-PEUART RX PK2 PH-PJ-PKLCD RST
PD3OC0D/TXD0PC-PD-PEUART TX PK3 PH-PJ-PKLCD BL
PD4OC1A/SSPC-PD-PE PK4 PH-PJ-PK7-seg MOSI
PD5OC1B/MOSIPC-PD-PE PK5 PH-PJ-PK7-seg SCK
PD6D- USB PK6 PH-PJ-PK7-seg LATCH
PD7D+ USB PK7 PH-PJ-PK
PE0OC0A/SDAPC-PD-PEI/O Port PQ0 PA-PB-PFUSB LED
PE1OC0B/SCLPC-PD-PEI/O Port PQ1 PA-PB-PFUSB State
PE2OC0C/RXD0PC-PD-PEI/O Port PQ2 LED 0
PE3OC0D/TXD0PC-PD-PEI/O Port PQ3 Button S0
PE4OC1A/SSPC-PD-PEI/O Port PDIPDI_DATAPDIPDI Data
PE5OC1B/MOSIPC-PD-PELCD SDA RESETPDI_CLOCK / RESETPDIPDI Clock and Reset
PE6RXD1/MISOPC-PD-PEI/O Port PROXTAL2 XTAL
PE7TXD1/SCKPC-PD-PELCD SCL PR1XTAL1 XTAL
