Controller module

The Controller module in Robotic HomaLab kit is a development board equipped with AVR ATmega series microcontroller and peripherial devices.

Robotic HomeLab kit has currently three generation Controller modules. Below, you can choose a suitable Controller module documentation.

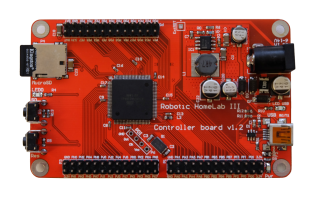

ATXmega128A1U (version 3.x)

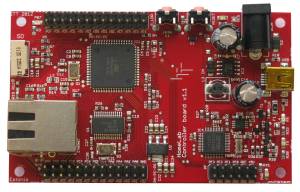

ATmega2561 (version 1.x)

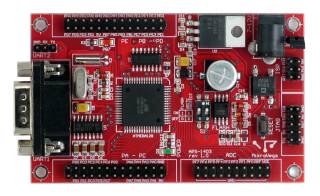

ATmega128
