Autostudy CAN

Schaltkreisdiagramm

Autostudy CAN - Circuit Diagram

Autostudy CAN - Circuit Diagram

Part Placement

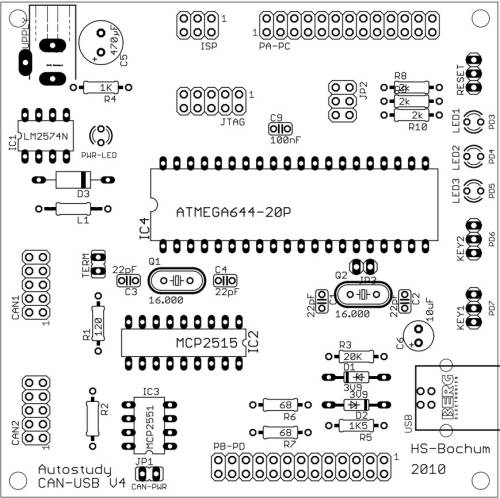

Autostudy CAN - Part Placement

Autostudy CAN - Part Placement

Bauteilliste

Menge. Wert Gerät Teile
1 Conrad 733980-62SUPPLY
1 Schottky-DIODE 11DQ06D3
2 Jumper, 1×2JP1, JP3, TERM
2 LED3MMLED1, LED2
2 LED3MMLED3, PWR-LED
3 PINHD-1×3KEY1, KEY2, RESET
2 PINHD-2×3ISP, JP2
3 PINHD-2×5CAN1, CAN2, JTAG
2 PINHD-2×13PA-PC, PB-PD
1 PN61729USB
1330uHR-EU_0207/12L1
1120R-EU_0207/10R1
10R-EU_0207/10R2
120KR-EU_0207/10R3
11KR-EU_0207/10R4
11K5R-EU_0207/10R5
268R-EU_0207/10R6, R7
32kR-EU_0207/10R8, R9, R10
23V9BZX55D1, D2
422pFC-EU025-024×044C1, C2, C3, C4
1470uFCPOL-EUE3.5-8C5
110uFCPOL-EUE2.5-6C6
1100nFC-EU025-024×044C9
216.000CRYSTALHC49U-VQ1, Q2
1LM2574NLM2574NIC1
1MCP2515MCP2515PIC2
1MCP2551MCP2551/PCA82C250IC3
1ATMEGA32-16PUATMEGA32-16PUIC4
